A device which allows beekeepers to remotely monitor their beehives and send an alert in case of theft. Beehives are very often located at position where there is no electricity available (nothing to say about WiFi connectivity) so it is not easy to establish some kind of reliable remote monitoring with low power requirements. Using NXP Rapid IoT Development Kit I wanted to test the concept of monitoring the beehive over SigFox network.
There are two main areas I would like to cover:
This project including the source code could be found on Hackster.io - https://www.hackster.io/vilemkuzel/iot-for-bees-beekeepers-a-bit-too-e2595d - as a submission to Revolutionize Your IoT Prototyping contest.
Let's have a look at the data collected by this concept/prototype:
No new data – monitoring stopped
Each time a monitoring message is captured (each 15 minutes) the value is stored in the database so we have an instant overview about the temperature inside the beehive.
Data could be visualized by a chart too.
In case the Theft Alert event is triggered (the movement of beehive was detected) a special message is immediatelly send over SigFox network to alert the beekeeper.

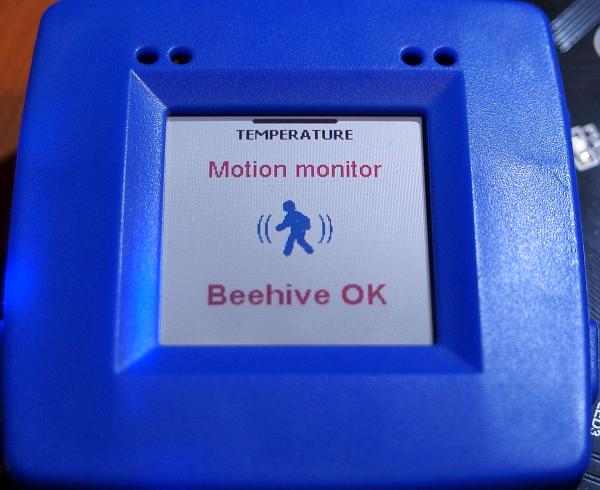

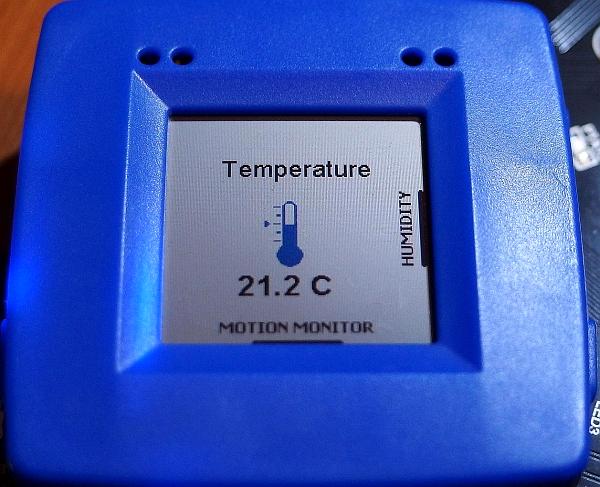

Device monitors the beehive and periodically (aproximately each 15 minutes) sends the data measured over the SigFox network.

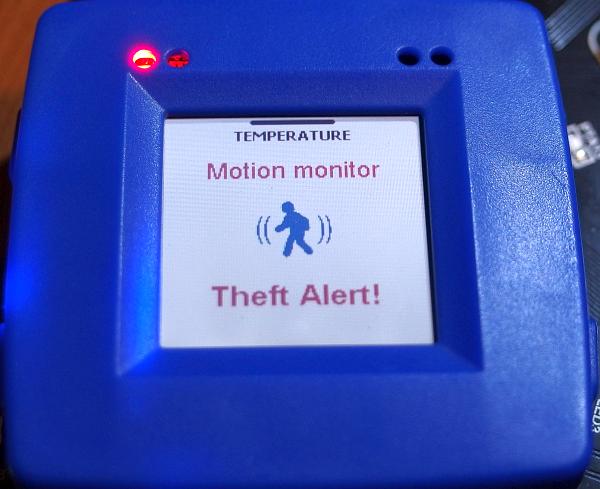

In case the motion is detected device starts with beeping, red LED shines and special alert message is immediately sent over the SigFox network to notify the beekeeper.
After few seconds without any motion detected is device reset to its normal state and watches for another alert. The temperature monitoring continues.

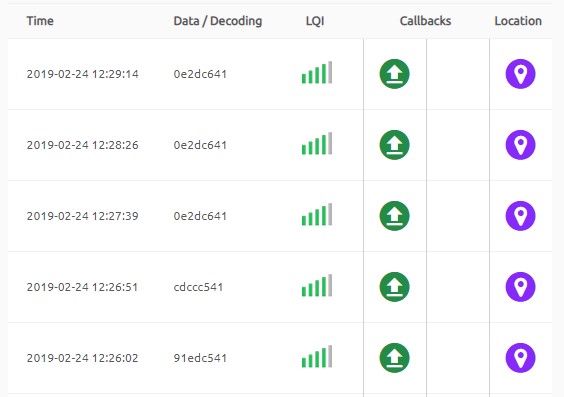

In this concept is the SigFox message always just one float (32) number which ise received and shown in SigFox Backend.

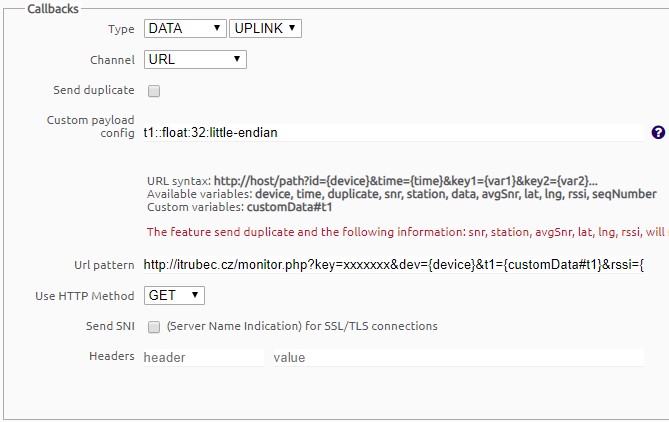

As I am experimenting with similar solutions on my own server I decided not to use the NXP/Atmosphere cloud but instead set up a custom callback to iTRUBEC server.
Callback is captured at iTRUBEC server by a simple REST API written in PHP which analyses the value, determines if it is some data or an alert, stores data in local DB and (in case of an alert) notifies the beekeeper via SMS.

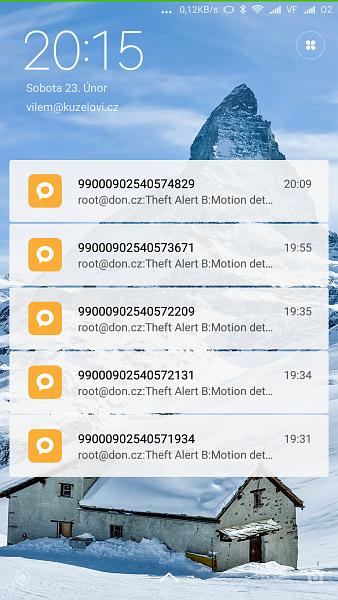

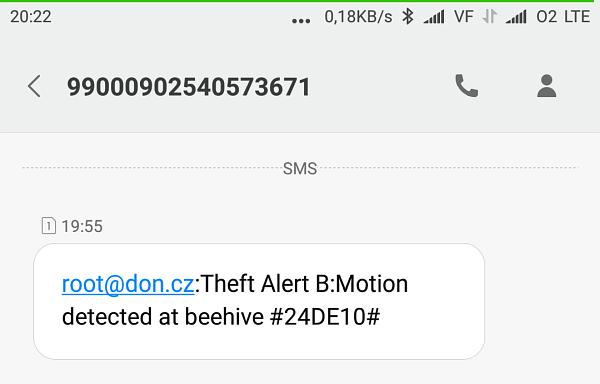

To send the SMS an E-mail to SMS service is used. The latency (time between the alert is triggered and the SMS received) observed is just a few seconds.

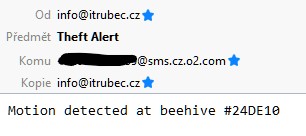

It sends an e-mail alert as a copy of the original message too.
The data is instantly visualised on iTRUBEC server as you can see above.
